The Delta single shot autocorrelator series are perfect devices for measuring the fs (10fs) to ps (100ps) pulses from single shot to high repetition rate (>100 MHz). The pulse wavelength range is from 500 nm to 1600 nm. The DELTA is most affordable (start from less than $5K) while it is very powerful. The palm-size 15x7x6 (in unit cm) make it portable and be able to measure a pulse at very tight space. The DELTA is most user- friendly thanks for the triangle delay line design. Incredibly, a pulse can be measured in a few minutes with the Delta!

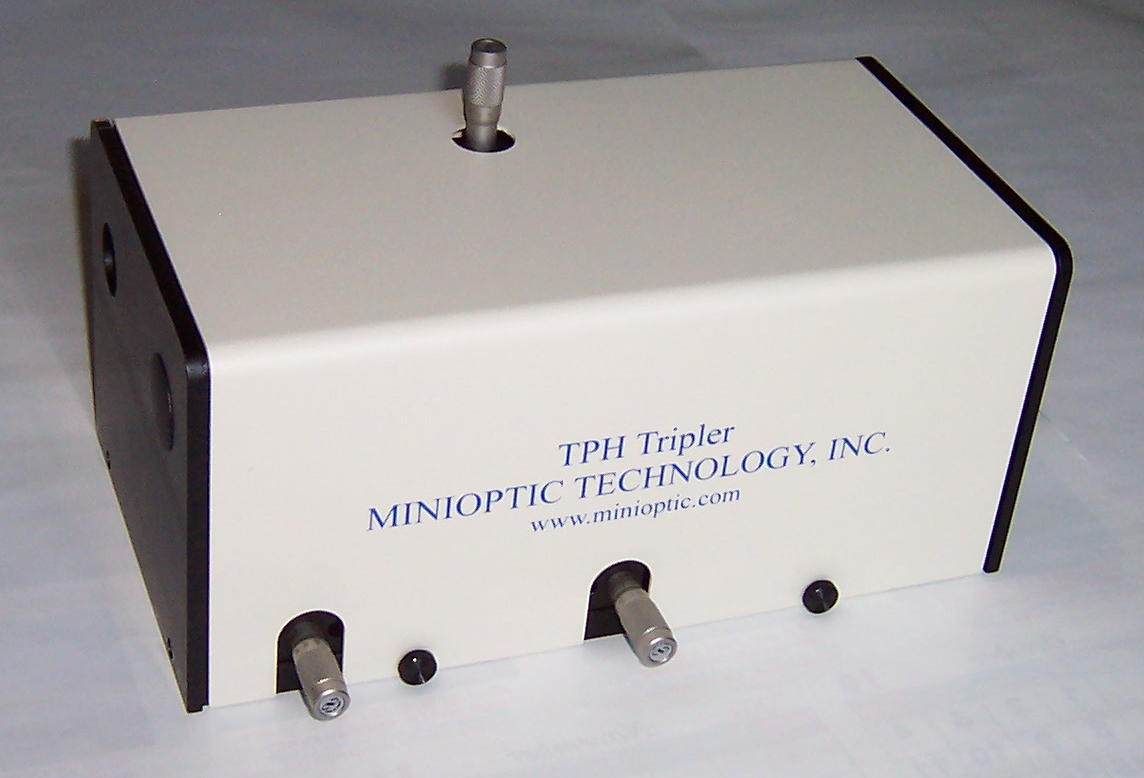

The best thing about our time-plate tripler is the single set of optics to cover the whole wavelength range 680-1060 nm. Only our TPL-tripler has the large wavelength tuning range without the change of mirrors. If you want a computer controlled motorized tripler, send your inquiry to us. The patented TimePlate Tripler series have been in the market for many years for frequency tripling and doubling pulses from Ti:Sapphire lasers. Minioptic Technology, Inc. the inventor of the TP tripler, have many years experiencies in making the TP triplers and in serving the customers. Currently, we make two type of TimePlate triplers, the TPH and TPL models. The TPH model is for the third and second harmonic generation (THG and SHG) for Ti:Sapphire amplifier with high pulse energy ~1 mJ or higher. While the TPL model is for pulses with pulse energy less than 5 uJ such as from a Ti:S oscillator. The TP triplers are most user-friendly and has the highest conversion efficiency compared to other similar products. Both the TPH and TPL model are very compact in size: 30x16x13 (unit in cm). Also, they have the lowest cost in the market.

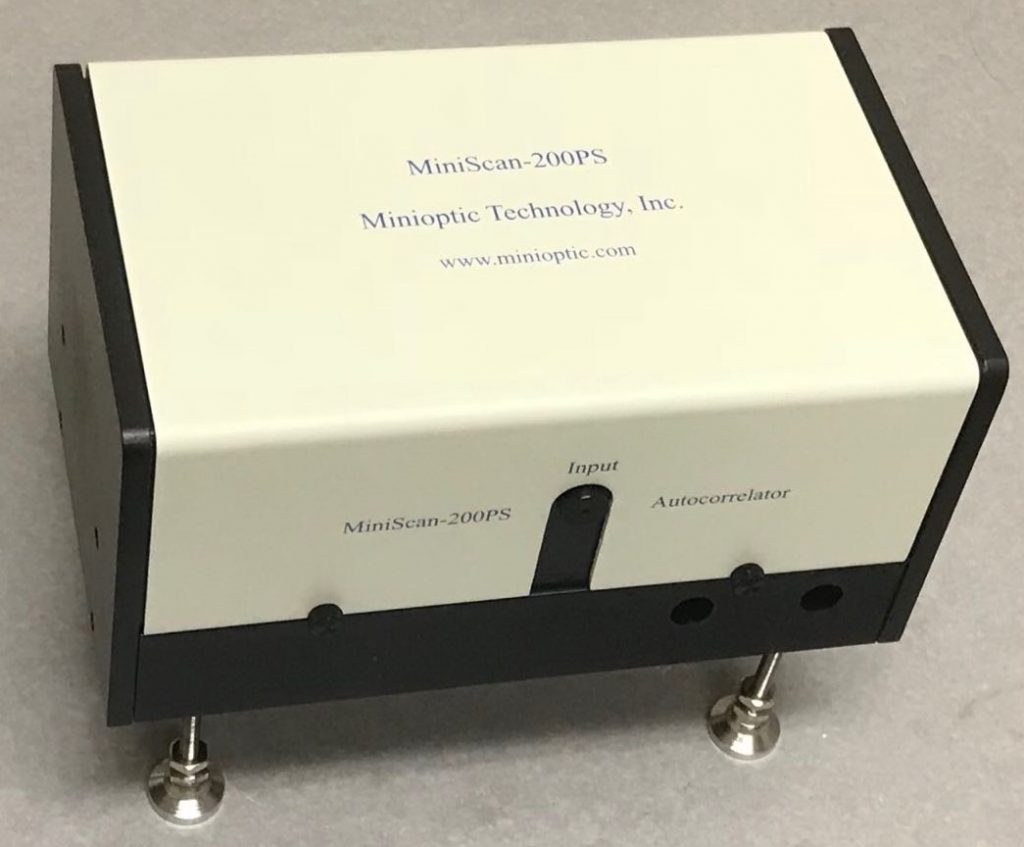

MiniScan autocorreltor is a scanning autocorrelator for measuring large pulse range from 50 femtosecond to tens picosecond. MiniScan autocorrelator covers very broad laser wavelength rang from 500nm to 1600nm. MiniScan autocorreltor having high sensitivity is suitable for most laser with high repetition rate and low power such as Ti:S laser and fiber laser. The palm-size 16x7x6 (in unit cm) make it portable and be able to measure a pulse at tight space. For more information click here
.JPG)
.JPG)
The TPL FHG is our new production line for the 4th harmonic generation of Ti:Sapphire lasers. The TPL FHG can generate the UV pulse from 250nm to 195 nm. The TPL FHG should be used with our TPL tripler.
